UT Series

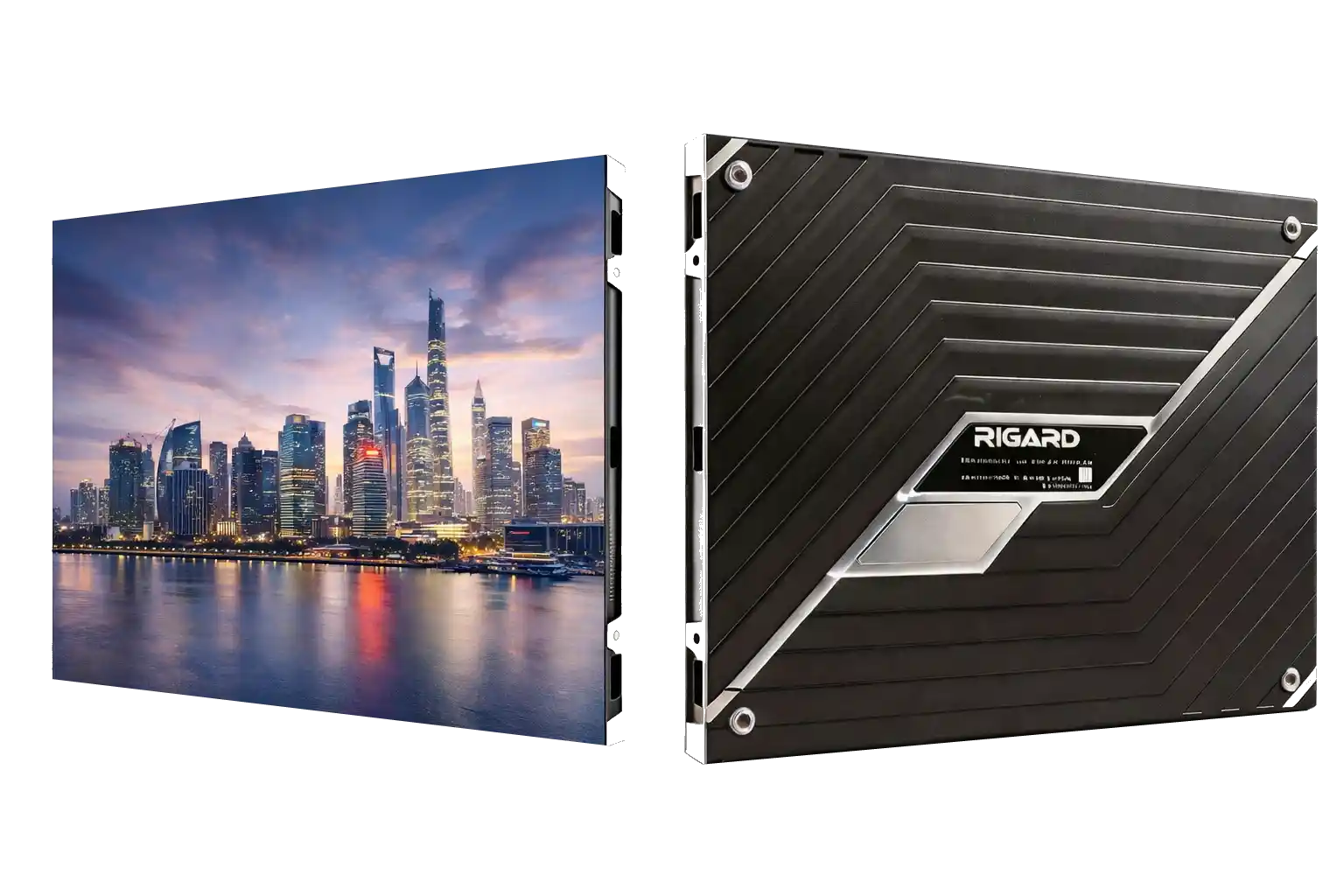

Cable-Free Module Design

Our advanced cable-free LED display modules feature a textured cabinet base optimized for superior heat dissipation. This innovative thermal management system guarantees stable performance and extends the screen's lifespan, even during 24/7 continuou.

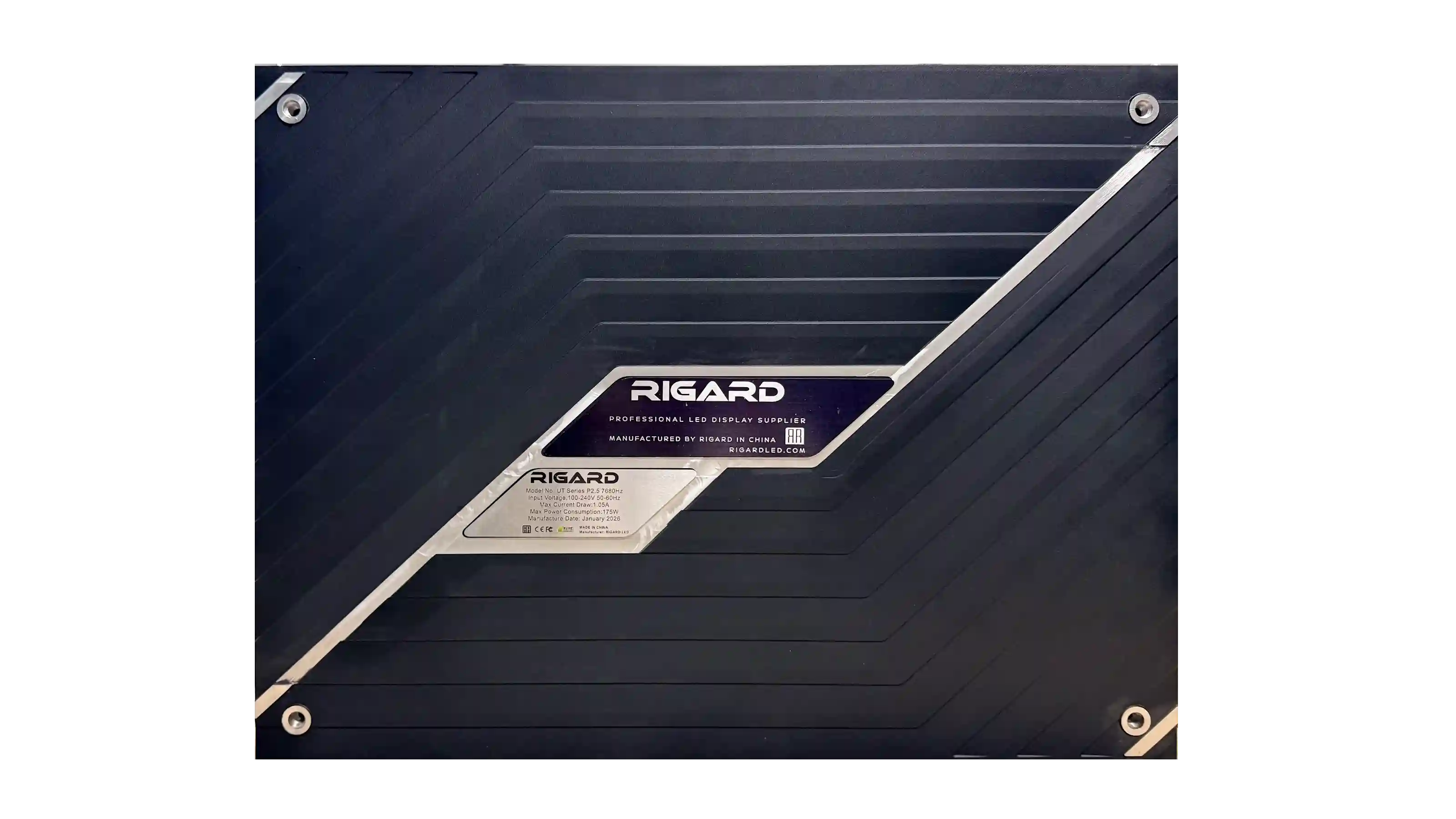

Optimized LED Screen Cooling Design

Textured Design

Heat Dissipation

The uniquely textured LED cabinet base optimizes heat dissipation for superior thermal management. This prevents overheating and ensures ultra-stable, long-lasting performance for your digital display projects.

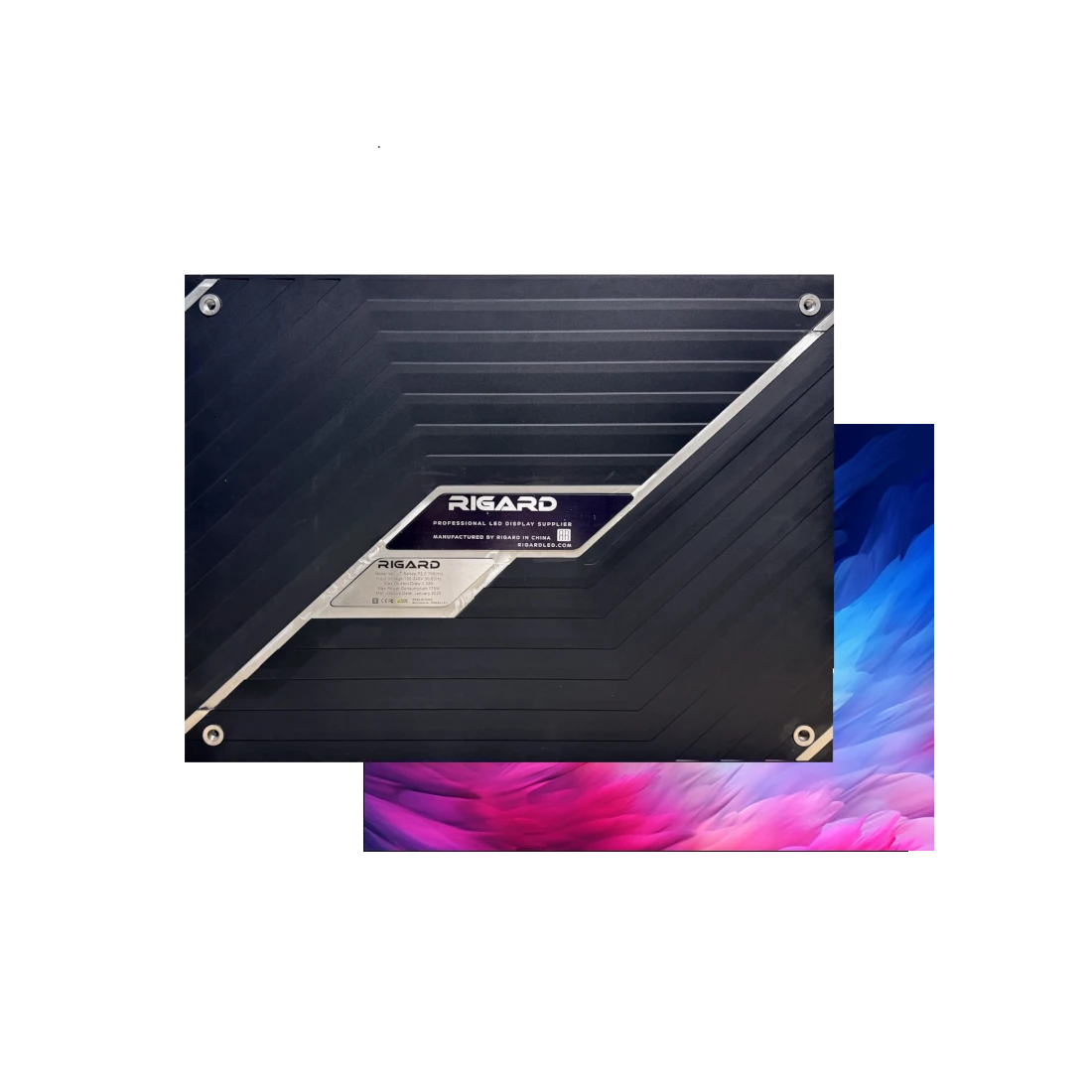

Optimized LED Screen Cooling Design LED Screen Panel

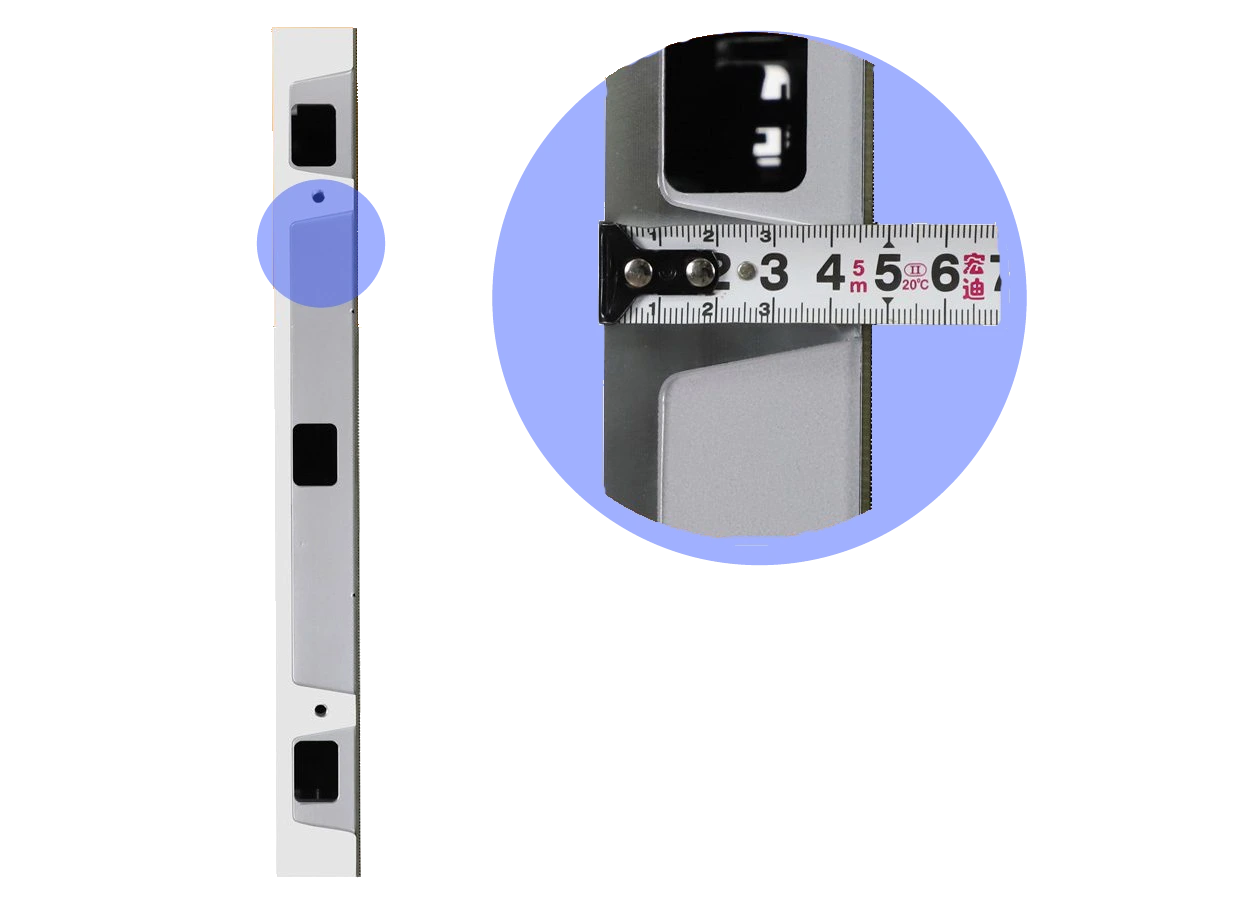

Ultra Thin and Light

UT Series indoor LED display is only 32mm thick, which is very space saving and easy to transport.

Seamless & Integrated Cabinet Design

Die-cast Aluminum Cabinet Fully Integrated Structure Seamless Splicing Neat Internal Wiring

LED Module

RJ45 Port

Power Supply

Die-Casting Aluminum Panel

HUB Card

Power Cable

Seamless & Integrated Cabinet Design LED Screen Panel

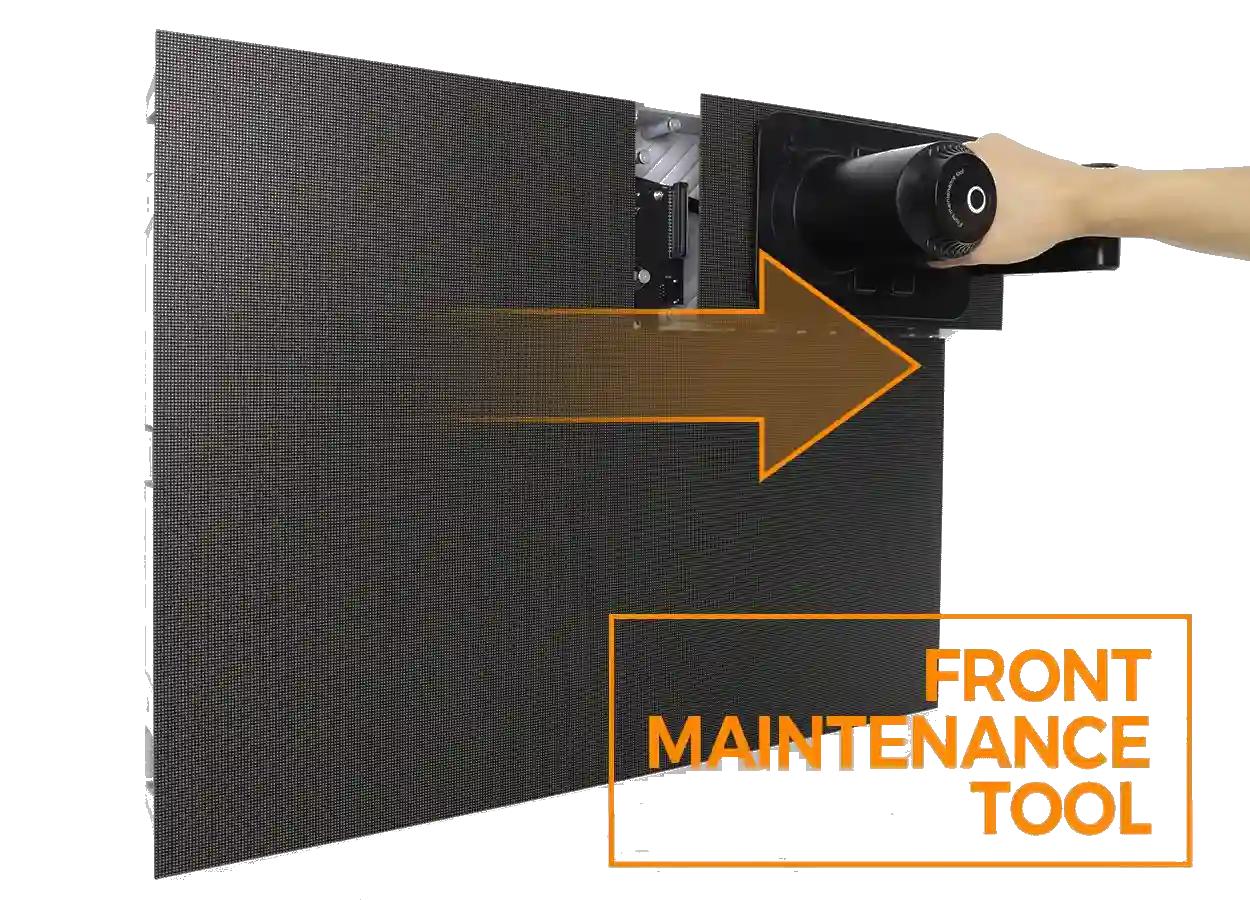

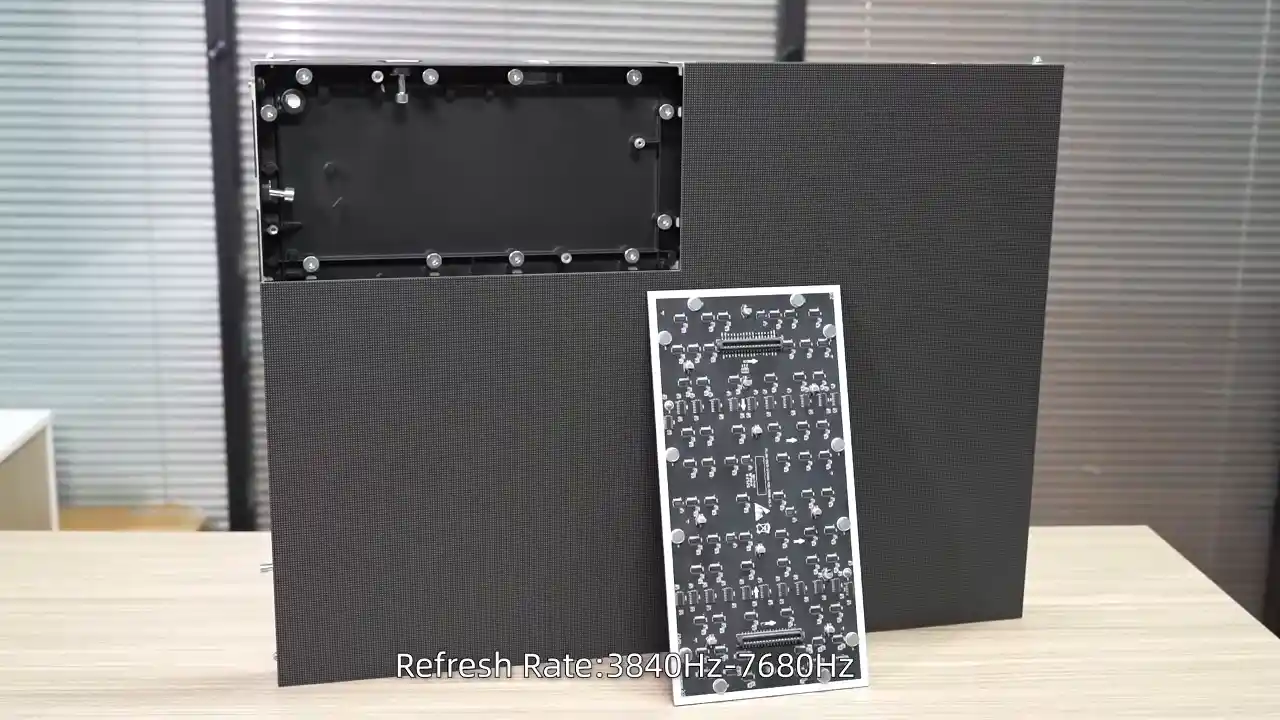

Space-Saving Front Maintenance LED Screen

Front Access Maintenance
No Rear Clearance Needed
Direct Wall Mounting
Lower Installation Cost

Maximize your commercial space with our front maintenance LED screen technology. Because all modules and parts can be serviced from the front, no rear access space is required. This allows for direct wall-mounting, saving valuable installation space and effectively lowering structural costs.

Space-Saving Front Maintenance LED Screen

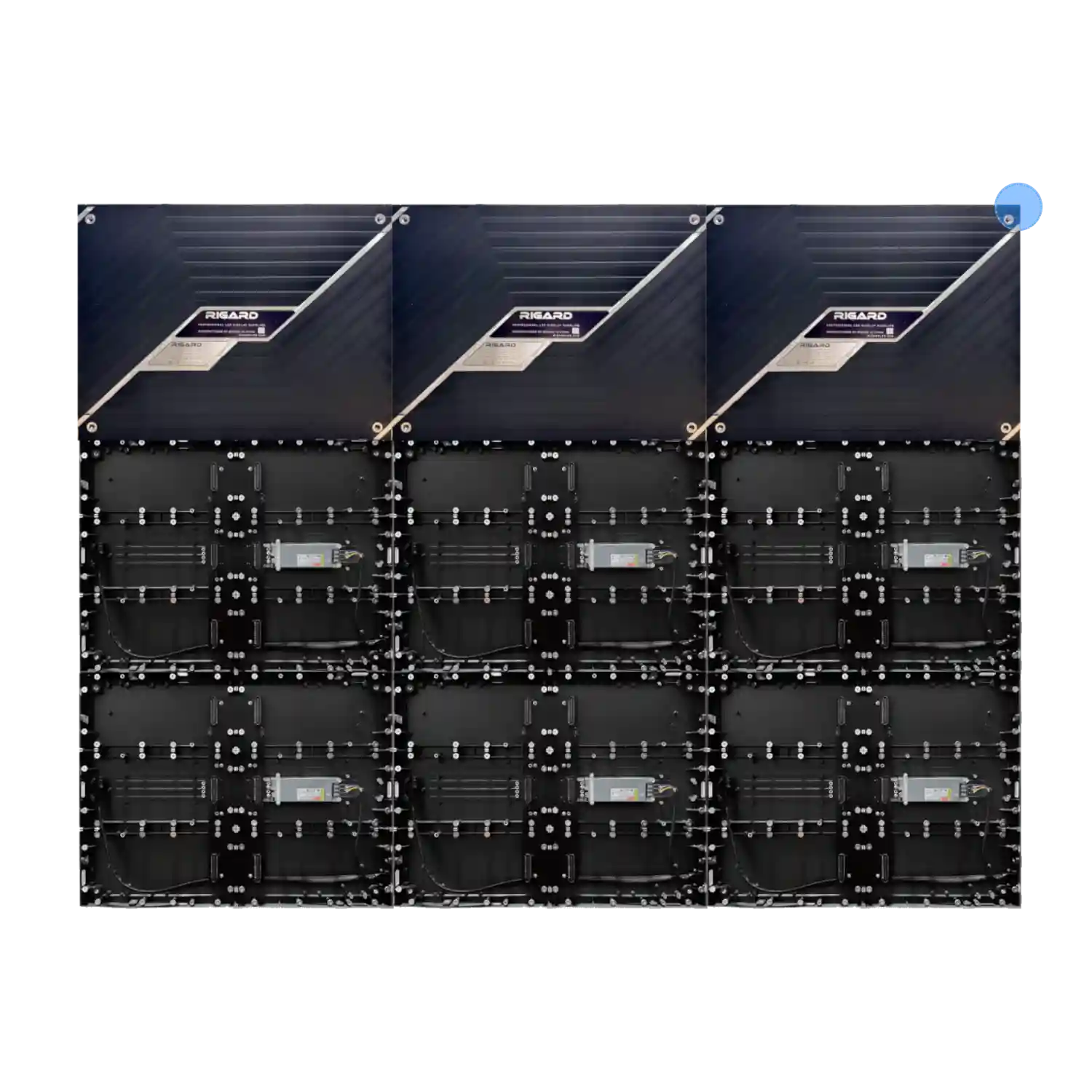

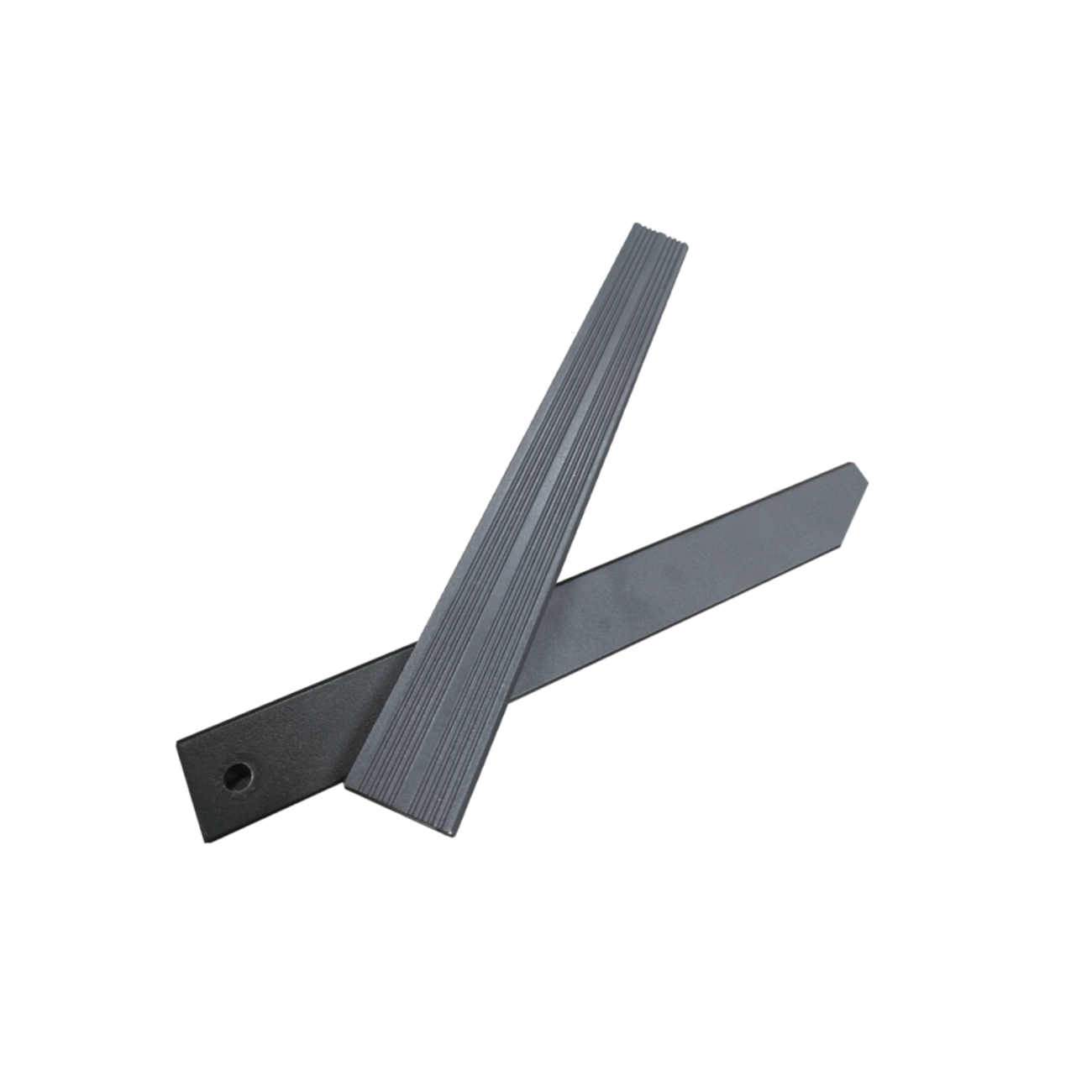

Optional Decorative Frame (Edge Trim)

Enhance your LED Display with a sleek decorative frame. It seamlessly hides mounting structures for a clean, high-end finish, while providing essential physical protection to the fragile screen edges against accidental bumps and damage.

LED Display Decorative Frame (Edge Trim)

Ultra-Wide Viewing Angle

160° Wide View & Stable Color Performance

Ultimate High-Contrast Display Solution

Comparison between standard and high-contrast solutions. Upgraded brightness, refresh rate, contrast ratio and bit depth deliver stronger dynamic range, crystal-clear visuals and authentic colors for ultimate high-contrast display.

Dynamic Contrast Crystal Clear Real Colors

Standard Solution

650Nits
3840Hz
6000:1
14bits

High Contrast Solution

1200Nits
7680Hz
10000:1
16bits

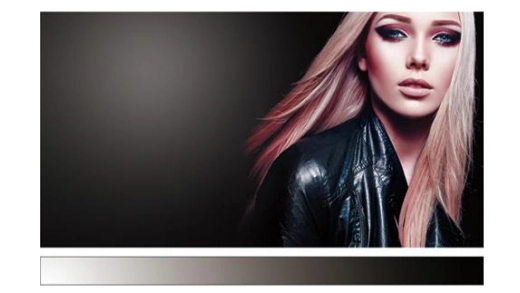

16-bit Ultra-High Gray Scale

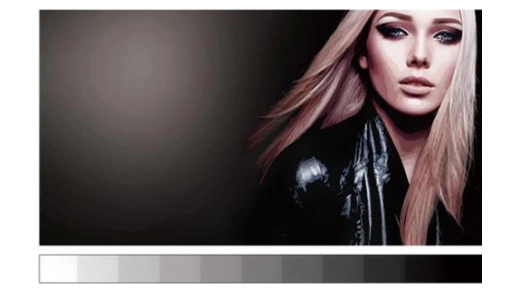

The comparison shows obvious differences between 8-bit and 16-bit grayscale. 8-bit only has 256 gray levels and tends to produce banding. 16-bit ultra-high grayscale offers abundant gray gradients for smooth light transition, eliminates banding and restores delicate portrait light and shadow texture.

Ultra-High Grayscale Banding Free Smooth Gradient Fine Layers

8 bits

16 Bits

Adaptable LED Display solutions to Fit Your Space

Designed for any environment, our LED screens support multiple mounting methods to seamlessly integrate into your project.

Wall-Mounted Installation

Suspended Installation

Creative LED Cube

Ground Stacking

All-in-One LED Screen

LED Digital Poster

Successful Cases

Tips:Click image to show more

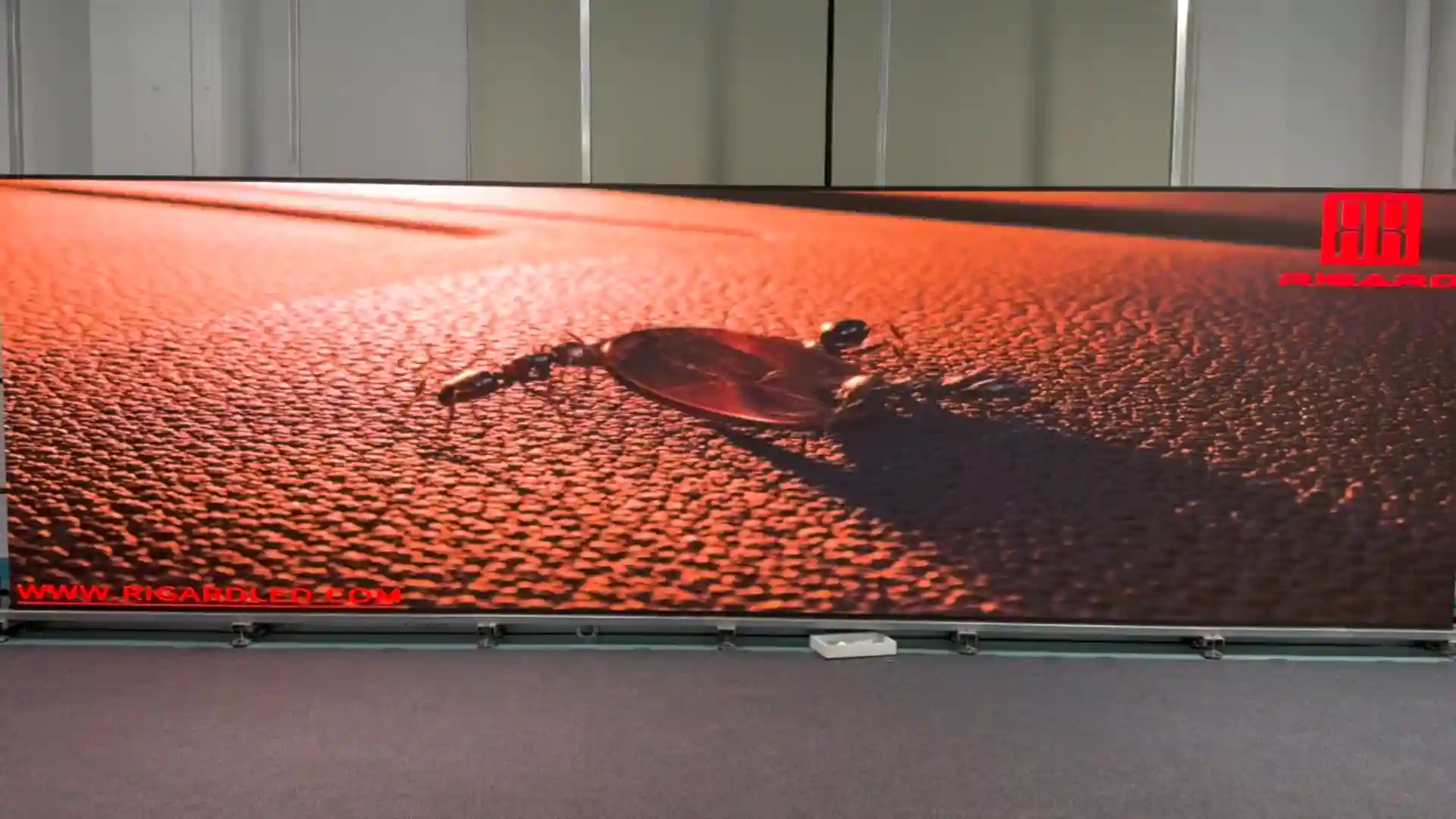

On-site Mobile Phone Shooting

Crystal Clear Visuals Zero Motion Blur Moiré-Free Shooting High-Fidelity Display

Real Product Footage

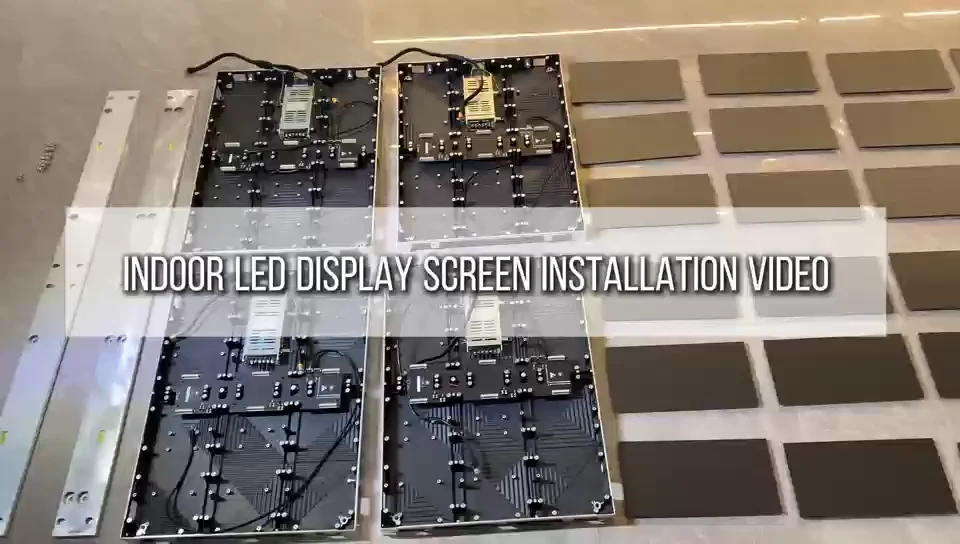

How to Install an LED Display

Step-by-Step Guide

1. Check Installation Materials

Ensure that the installation wall is smooth and flat.

Install with the bubble in the middle of the two lines.

2.Install Easy Structure

Confirm the spacing between the easy structure according to the spacing of the positioning.

Screws on the back of the cabinet.

The bubble of the level is in the middle and fix the easy structure on the wall.

3.Assemble the box body

Nut fixed position / Fix the nuts at the four corners of the cabinet.

Hang the cabinet on the easy structure.

Cabinets to secure the cabinets.

Commercial Indoor LED Screen Technical Specifications

Panel / Pitch	UT-P2.5	UT-P1.86	UT-P1.53	UT-P1.25
Resolution	256 * 192	344 * 258	416 * 312	512 * 384
Pixels Per Panel	49,152	88,752	129,792	196608
Pixels per Sq M	160,000	288,906	422,500	640,000
LED	SMD 2020	SMD 1515	SMD 1212	SMD 1010
Brightness (Nits)	650/1200	650	650	650
Scan Rate	1/32 or 1/16	1/43	1/52	1/64
Viewing Angle Horizontal	160
Viewing Angle Vertical	160
Refresh Rate	3840Hz/7680Hz
Grey Scale	14 Bits/16Bits
Weight	6.5 kg
Width	640MM(25")
Height	480MM(19")
Depth	32MM
Input Voltage	100-240V
Max Wattage	105 Watts
Receiving Card	Novastar
Operating Temp	-20 - 45 C
IP Rating	IP43
Certifications	CE/ROHS/FCC

LED Display & Video Wall FAQ

Tips:Click the title to view the answer

What is the best pixel pitch for a church LED video wall?

The ideal pixel pitch depends on the viewing distance from the screen to your first row of seating. For most modern worship spaces, a P2.5 to P3.91 pixel pitch is the most popular choice, offering excellent clarity for sermon slides and lyrics while remaining budget-friendly. If your congregation sits very close to the stage, an ultra-fine pitch like P1.8 or P2.0 provides ultimate sharpness.

Will the LED screen cause flickering on camera during our worship live streams?

Not at all. We understand that live broadcasting is crucial for modern ministries. Our church LED displays feature a high refresh rate (3840Hz to 7680Hz), guaranteeing smooth, flicker-free performance on camera. This ensures your online congregation enjoys a broadcast-quality live-streaming experience without any distracting scan lines.

What are the installation options for an existing church stage?

We offer versatile mounting solutions tailored to your sanctuary's architecture. You can choose a wall-mounted setup for a seamless backdrop, a suspended (flown) installation to save valuable stage floor space, or a ground-supported system if you need a flexible, movable setup for different seasonal stage designs.

How long does a commercial LED display last, and is it easy to maintain?

A high-quality LED screen is built to last up to 100,000 hours (over 10 years of continuous operation). At Rigard LED, our panels feature advanced thermal management to ensure long-term stability. Furthermore, our 100% full front-service design allows your AV team to easily replace any module or power supply directly from the front in seconds, without needing rear access.

Can the LED screen size be customized to fit our specific wall dimensions?

Absolutely. Our LED video walls are built using modular cabinets (such as 640x480mm /600x337.5mm/500x500mm/500x1000mm). This modular design allows us to scale and configure the display to fit virtually any dimension, aspect ratio, or unique architectural requirement, ensuring a perfect integration into your space.
