RT Series

Portable LED Screen & Factory direct price

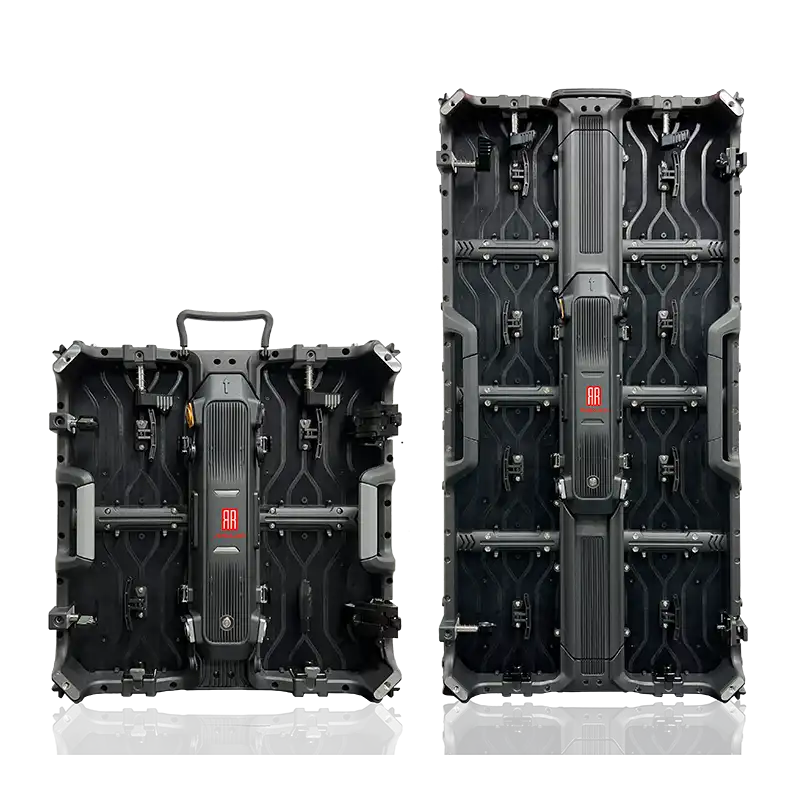

Dual Cabinet Sizes: 500×500mm & 500×1000mm (19.7" × 19.7" / 39.4")
Ultra-Slim & Featherlight Profile for Effortless Handling
Seamless Mixed Splicing (Combine 500×500 & 500×1000mm Panels)
Indoor & Weatherproof Outdoor Options
Flexible Pixel Pitch Range: P1.25 to P3.91

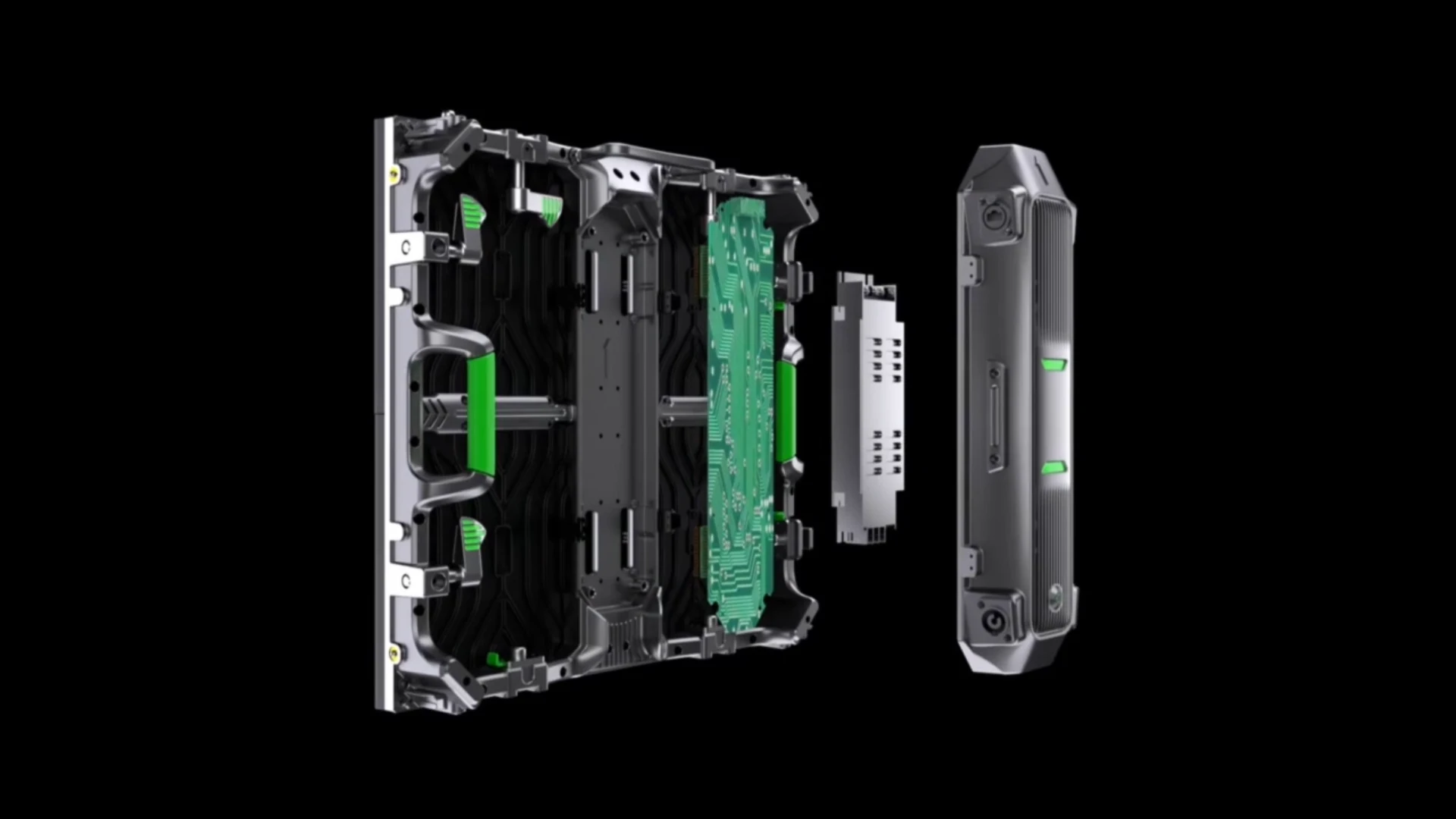

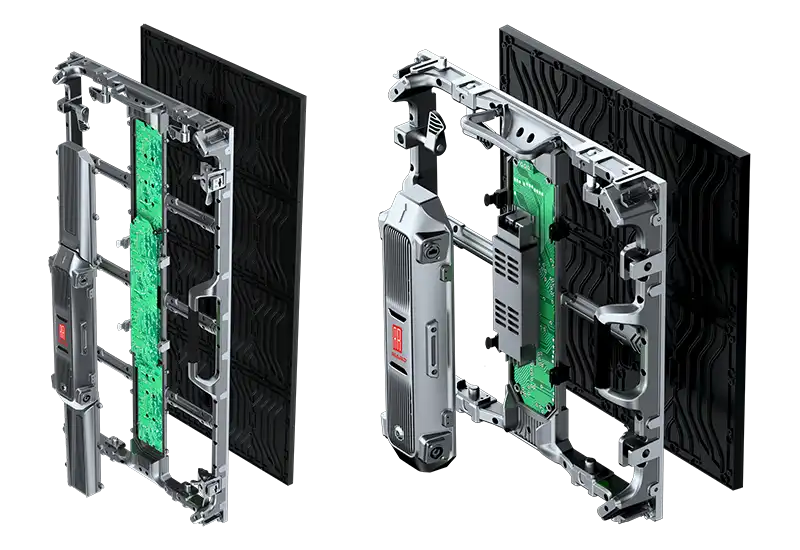

Integrated Cable-Free Modular Hub System

Engineered for rapid event deployment, the Rigard RT Series Rental LED Display features an all-in-one power box integrating the hub card, power supply, and receiving card. With direct hard-pin wireless module connections and a tool-free plug-and-play design, whole power box replacement is effortless and instantaneous—dramatically reducing onsite maintenance time.

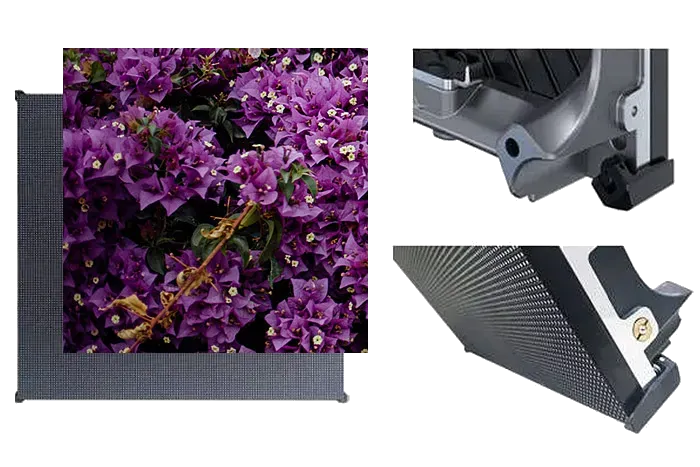

Corner Guard / Anti-Collision Protection

Built-in Protective Corner Shields safeguard your portable modular LED cabinet. Shields vulnerable cabinet corners from drops and accidental collisions during assembly and transit. Perfect for church LED screen and event video wall applications; protects LED lamp beads, reduces maintenance costs, and guarantees a damage-free installation every time.

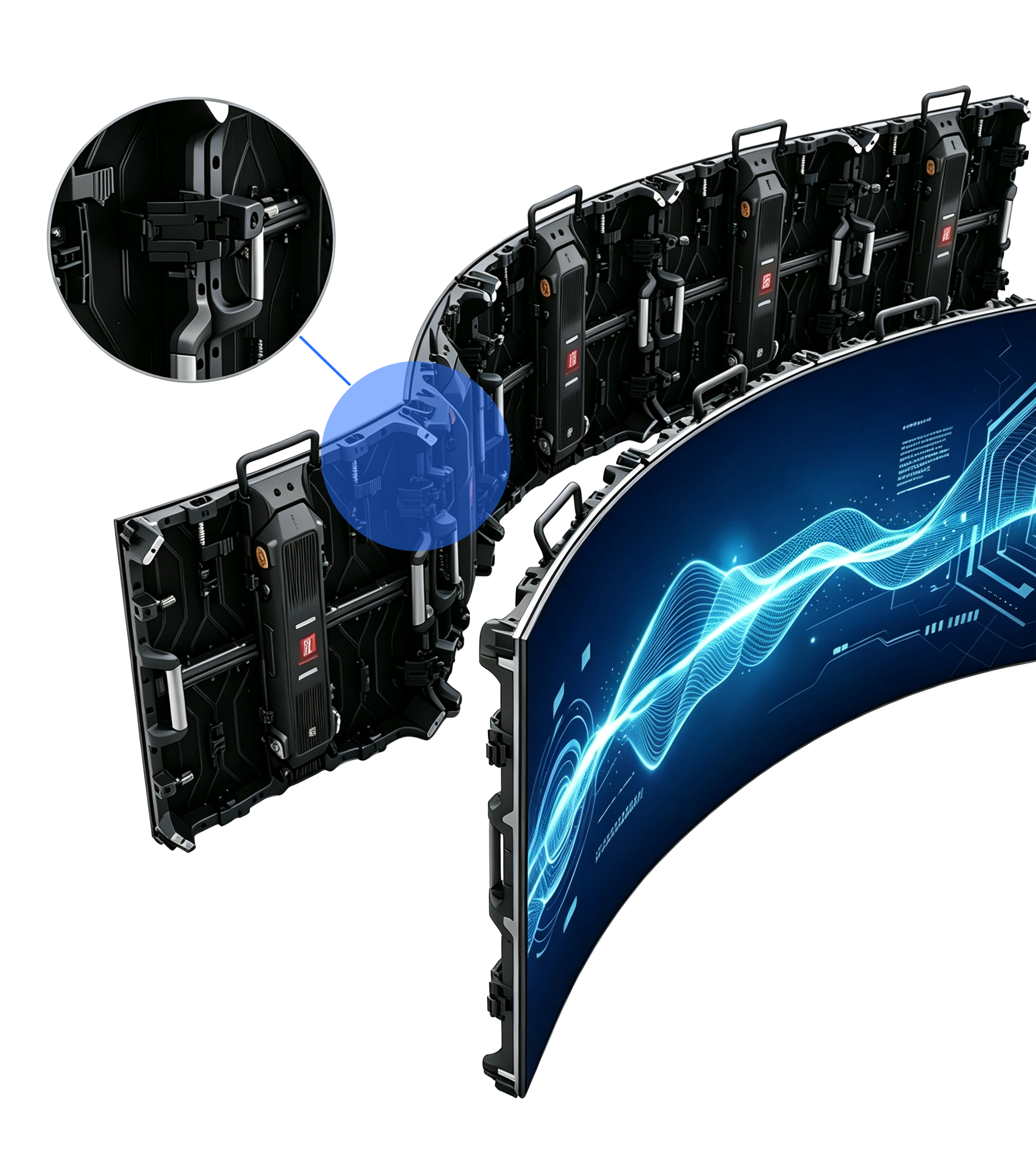

Precision Curved Display & High-Accuracy Arc-Lock System

Designed for immersive stage backdrops and creative architectural setups, this portable modular LED cabinet is ideal for church LED screen projects. Our rental series features an advanced curve-lock mechanism for smooth concave (inner arc) configurations. The rugged rear cabinet architecture ensures seamless inter-cabinet alignment and tool-free quick assembly, delivering a stunning, gap-free panoramic viewing experience for modular LED video walls.

Wide Viewing Angle

140° Wide View & Stable Color Performance

14-bit High Gray Scale

The comparison shows obvious differences between 8-bit and 14-bit grayscale. 8-bit only has 256 gray levels and tends to produce banding. 14-bit high grayscale offers abundant gray gradients for smooth light transition, eliminates banding and restores delicate portrait light and shadow texture.

High Grayscale Banding Free Smooth Gradient Fine Layers

8 bits

14 Bits

Successful Cases

Tips:Click image to show more

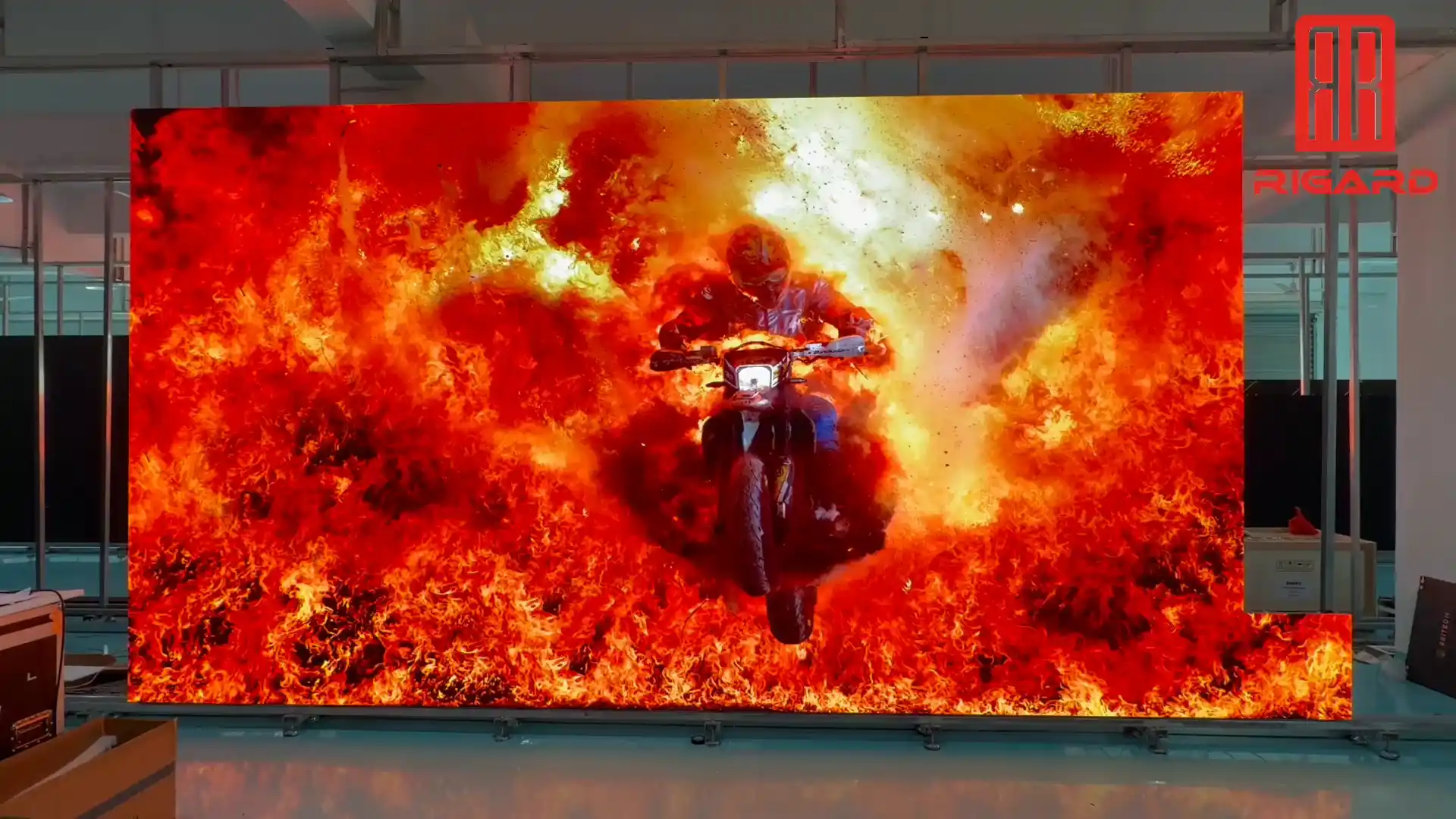

On-site Mobile Phone Shooting

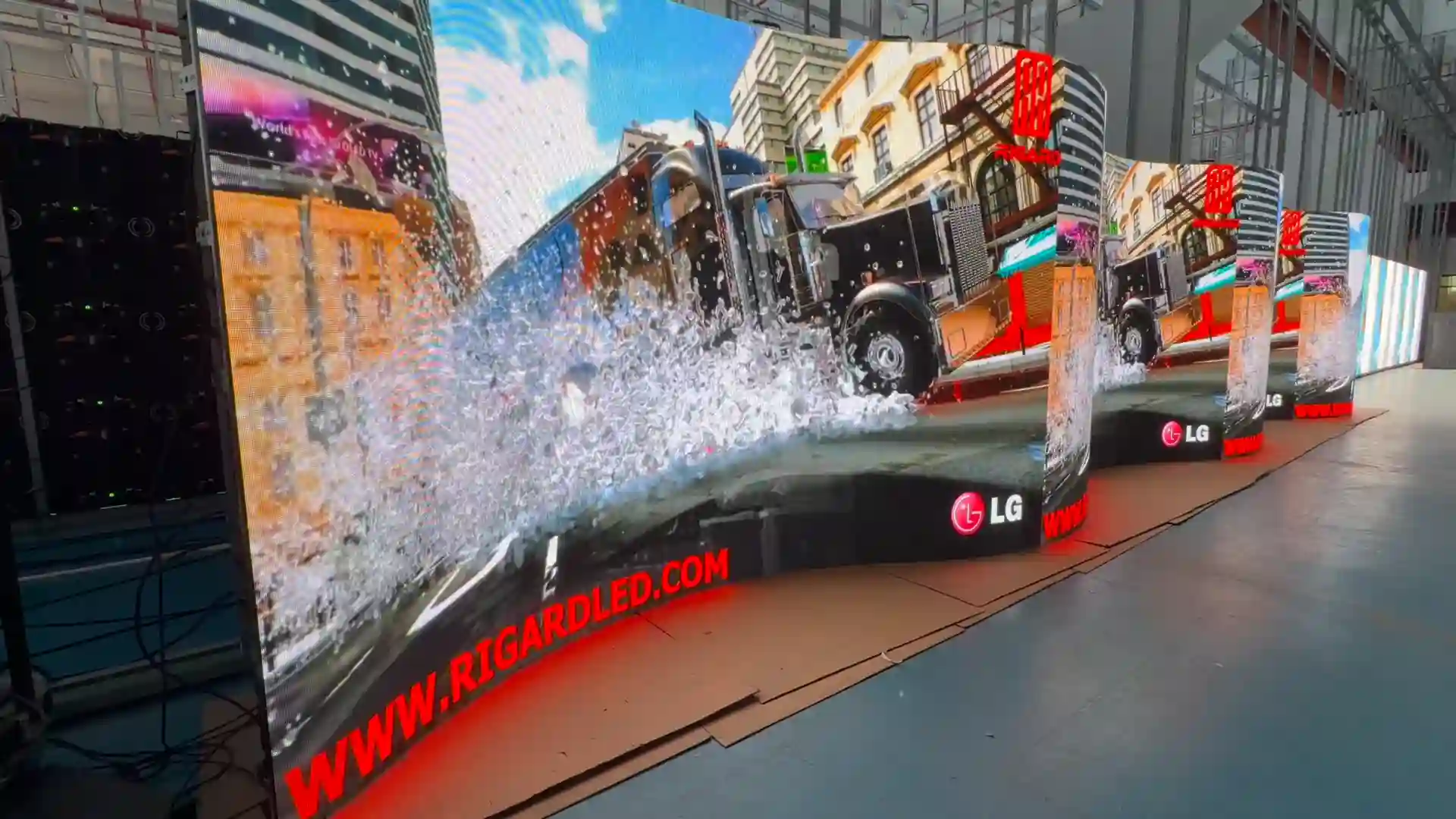

Curved LED Display Live Demo

Product Video Overview

Seamless Mixed Splicing Single-Person Quick Lock Flicker-Free Touring-Grade Protection

Indoor & Outdoor LED Display Technical Specifications

Panel / Pitch	RT‑P3.91	RT‑P2.97	RT‑P2.6	RT‑P1.95	RT‑P1.56	RT‑P1.25
Resolution	128*128	168*168	192*192	256*256	320*320	400*400
Resolution	256*128	168*336	192*384	256*512	320*320	400*400
Pixels per Sq Meters	160,000	11,896	147,456	262,144	409,600	640,000
LED	SMD 2020	SMD 2020	SMD 1515	SMD 1515	SMD 1010	SMD 1010
Brightness (Nits)	800	650	650	650	650	650
Refresh Rate	3840Hz/7680Hz	3840Hz/7680Hz	3840Hz/7680Hz	3840Hz/7680Hz	3840Hz	3840Hz
Viewing Angle Horizon	140	140	140	140	160	160
Viewing Angle Vertical	140	140	140	140	140	140
Width*Height	500500MM & 5001000MM 19.7" × 19.7"&19.7" × 39.4"				500*500M 19.7" × 19.7"	500*500M 19.7" × 19.7"
Grey Scale	14 Bits
Weight of Panel	7.8‑12 kg
Depth	87 mm (3.43")
Input Voltage	100‑240V
Max Wattage	200Watts(500500MM) 400Watts(5001000MM)
Receiving Card	Novastar / Colorlight
Operating Temp	-20 ‑ 45 C
IP Rating	IP43(Indoor)
Certifications	CE/ROHS/FCC

Panel / Pitch	ORT‑P3.91	ORT‑P2.97	ORT‑P2.6	ORT‑P1.95	ORT‑P1.56	ORT‑P1.25
Resolution	128*128	168*168	192*192	256*256	320*320	400*400
Resolution	256*128	168*336	192*384	256*512	320*320	400*400
Pixels per Sq Meter	160,000	11,896	147,456	262,144	409,600	640,000
LED	SMD 1921	SMD 1415	SMD 1415	MIP	MIP	MIP
Brightness (Nits)	6000	5500	5000	4000	4000	4000
Refresh Rate	3840Hz/7680Hz	3840Hz/7680Hz	3840Hz/7680Hz	3840Hz/7680Hz	3840Hz	3840Hz
Viewing Angle Horizon	140	140	140	140	160	160
Viewing Angle Verti	140	140	140	140	140	140
Width*Height	500500MM & 5001000MM 19.7" × 19.7"&19.7" × 39.4"				500*500M 19.7" × 19.7"	500*500M 19.7" × 19.7"
Grey Scale	14 Bits
Weight	8‑13.5 kg
Depth	87 mm (3.43")
Input Voltage	100‑240V
Max Wattage	200Watts(500500MM) 400Watts(5001000MM)
Receiving Card	Novastar / Colorlight
Operating Temp	-20 ‑ 45 C
IP Rating	IP65(Outdoor)
Certifications	CE/ROHS/FCC

LED Display & Video Wall FAQ

Tips:Click the title to view the answer

Can I mix and assemble 500×500mm and 500×1000mm cabinets together in one video wall?

Yes, absolutely. Both 500×500mm and 500×1000mm cabinets share the exact same lock mechanisms, positioning pins, and module structures, allowing 100% seamless mixed splicing. This combination gives event managers maximum flexibility to build various screen sizes and aspect ratios while reducing setup time and labor costs.

Are these LED panels suitable for outdoor rainy weather and daytime direct sunlight?

Yes. Our outdoor rental series features an IP65/IP66 waterproof and dustproof rating, fully sealed modular design, and waterproof power box interfaces to withstand sudden rainstorms. With high brightness levels up to 4,500–5,000 nits, the screen delivers crisp, vibrant visuals even under direct midday sunlight.

How fast can the screen be installed, and can a single technician handle it?

Designed for fast-paced event setups, our lightweight die-cast aluminum cabinets feature ergonomic one-touch quick-locks and vertical positioning handles. A single technician can easily mount and lock a cabinet in seconds without any tools, making fast single-person installation and teardown a reality.

Does this rental series support curved or creative screen configurations?

Yes. By adding optional high-precision angle-adjusting curve locks (-10° to +15°), you can easily build smooth concave (inner arc), convex (outer arc), and wave-shaped video walls for immersive stage design and creative architectural backdrops.

Will the screen flicker or show scan lines when captured on camera or during live streaming?

No. Engineered with high-end driver ICs, our displays offer a 3840Hz (or higher) ultra-high refresh rate, 16-bit grayscale, and anti-moiré surface treatment. This guarantees flicker-free, scan-line-free performance when recorded by 4K cameras, broadcast equipment, or smartphones.
